Supervisory Control Unit

Description

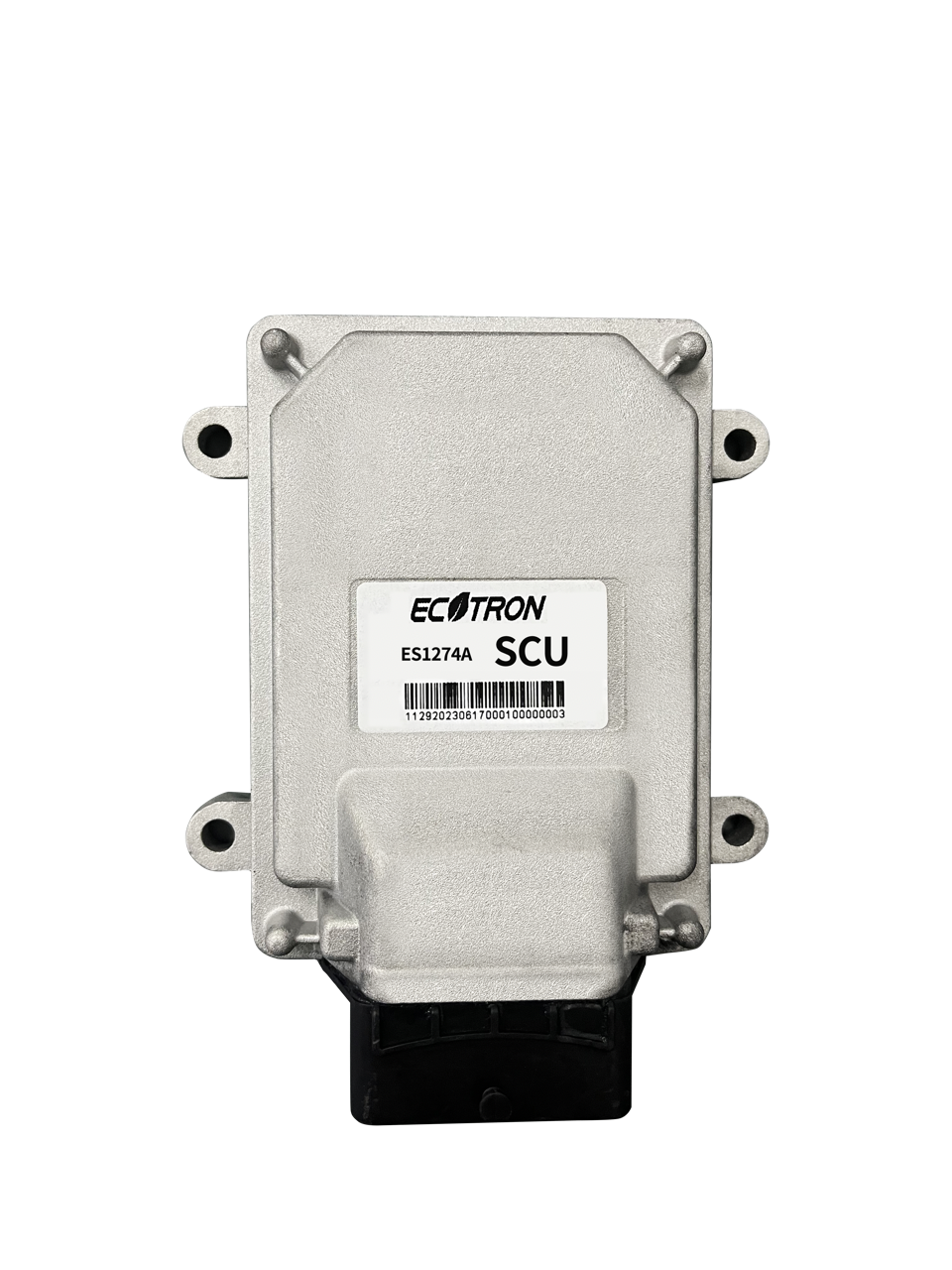

The Ecotron ES1274A SCU is packed with 3x CAN, LIN, DI, AI, PWM, HSO, LSO, and 5V outputs in a compact package. This controller can run your entire EV system with its powerful MCU and tailored feature set.

Specs

• 3x CAN bus
• LIN bus
• 12/32V digital inputs
• 5/12/32V analog inputs
• 2x frequency inputs
• 4x high side outputs (2 PWM)
• 10x low side outputs (2 PWM)
• 3x 5V sensor power outputs
• Firmware flash over CAN

Included

The SCU ships with a mating connector kit but does not come with any programming. Logic can be written in C with a provided API or through the X Controls xVCU suite.
