iM-225DX-D Remote Mount

Description

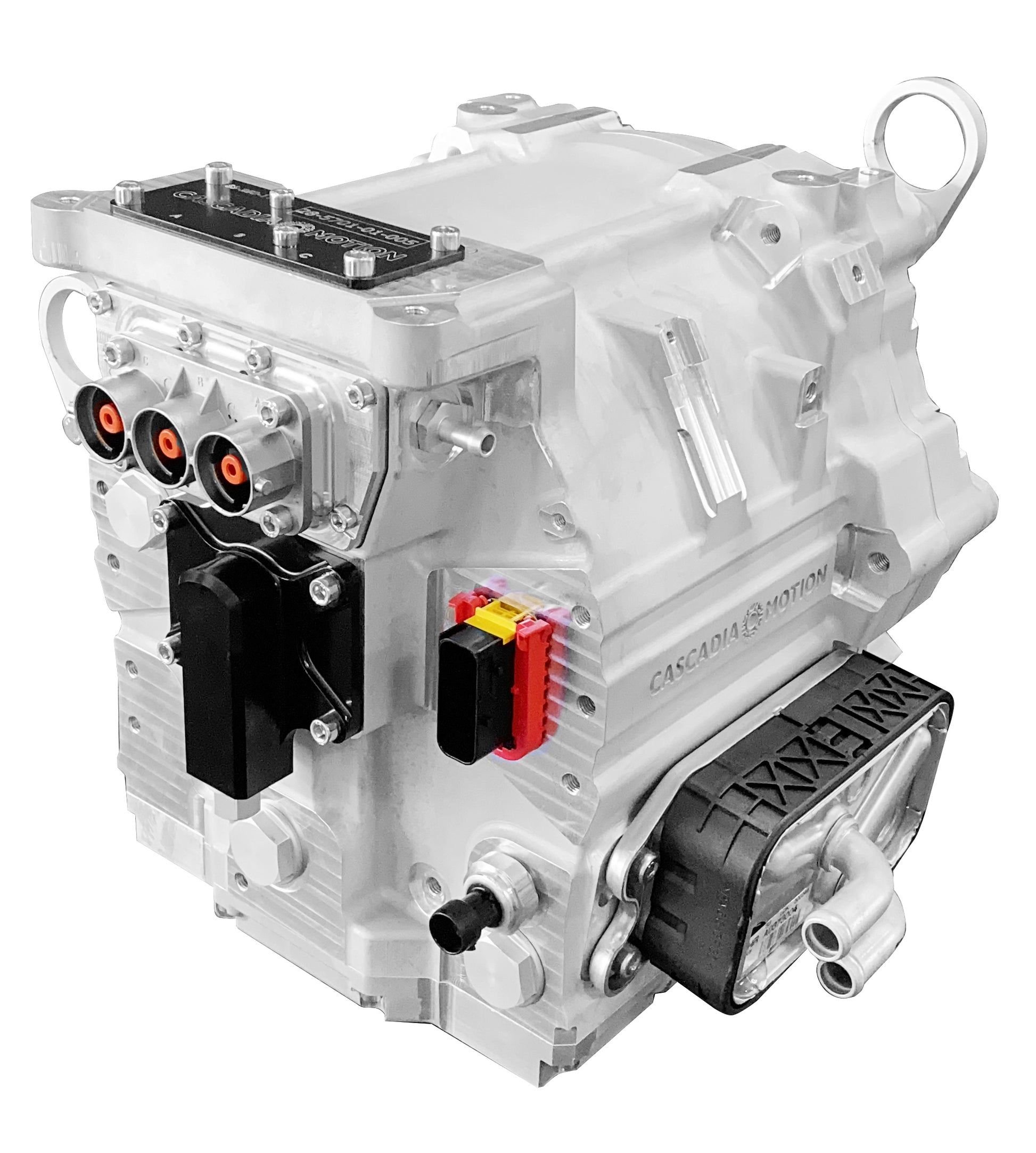

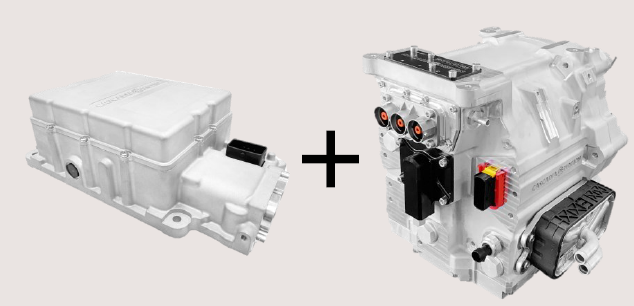

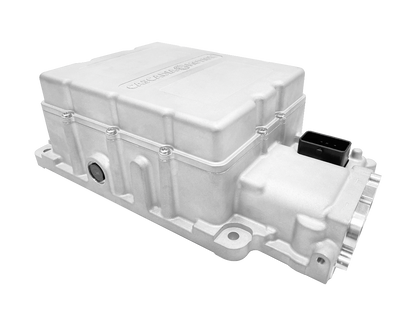

Remote mounted iM-225DX-D drive unit from Cascadia Motion consisting of the CM200 inverter and SS-250 motor. This package is ideal for a wide range of 400V vehicles where the stacked integrated drive unit will not fit.

Condition: new in box/crate

Due to the cost of shipping all drive unit sales are final.

Specs

• 500Nm peak torque, 230Nm continuous
• 225kW peak power, 110kW continuous
• 12000 RPM maximum speed
• 95% peak efficiency

Included

The drive unit ships with the required 3 motor phase cables and the HV DC cable with 2m lengths. A connector kit is included for the low voltage connector.
